Sample download |Set as home page|Join favorites|Home|Contact|中文

Products

Wire connector | Products

This current location is:Home > Products > Wire connector

KV222-414
click: 3492
RoHS compliantThe project team7 (Installation technology)Minimum sectional area of connectable wire [mm?]0,08 - 2,5 mm?Minimum sectional area of connectable wire [AWG]28 - 14 AWGApplicable conductor typee+fThe connection methodCAGE CLAMP?CONNECTIONMi
pdf download：click down

Detailed description

technical

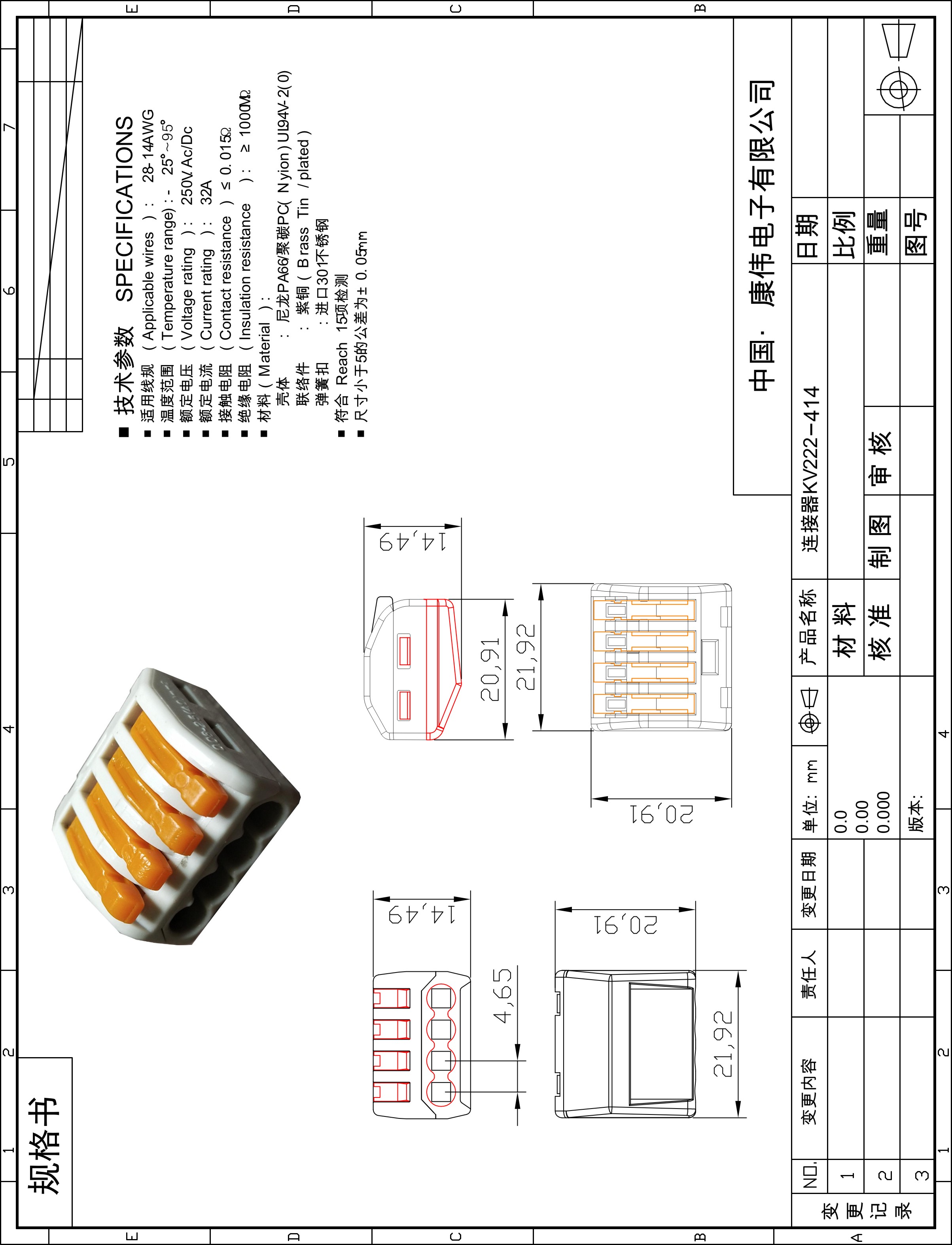

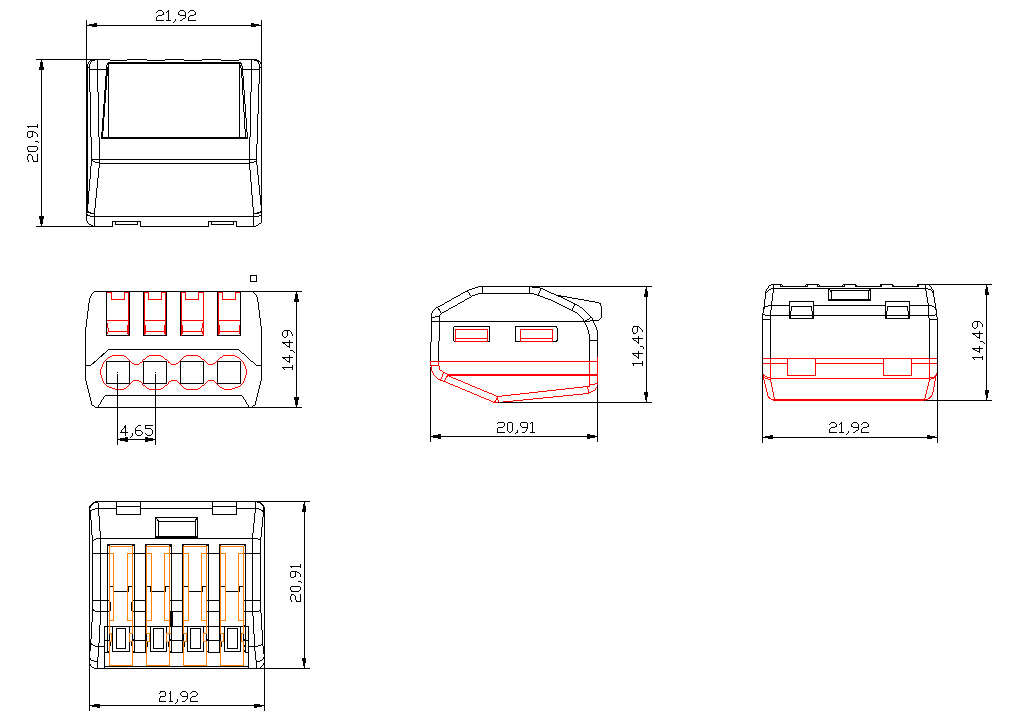

Dimension
Ordering
Related
pdf

RoHS compliant

The project team	7 (Installation technology)
Minimum sectional area of connectable wire [mm?]	0,08 - 2,5 mm?
Minimum sectional area of connectable wire [AWG]	28 - 14 AWG
Applicable conductor type	e+f
The connection method	CAGE CLAMP?CONNECTION
Minimum sectional area of connectable wire [mm?]	0,08 - 4 mm?
Minimum sectional area of connectable wire [AWG]	28 - 12 AWG
Applicable conductor type	f
The rated voltage EN	250 V
Can withstand instantaneous peak voltage	4 kV
Pollution levels	2
Rated current EN	32 A
The weight	3,072 g
Color	grey
Wiring direction	Lateral connection
Number of connectable wires	2
Number of potential	1
height	14,5 mm
height	0,571 in
Thickness	22?mm
Thickness	0,488 in
Width	21?mm
Width	0,807 in
Minimum stripping length	9 mm
Maximum stripping length	10 mm
stripping length	0,37 in

pdf down：click down
