Wire connector | Products
This current location is:
KV773-202
click: 3491
name number unit Safety information 1?Ground power cord??rating?IEC/EN 60664-1??The rated voltage (II / 2) [V]?450?V?Rated pulse voltage (II / 2) [kV]?4?kV?Rated current [A]?24?A?Legend (rating)?(II / 2) ? Overvoltage category II / Pollution degree 2
Detailed description
- technical
- Dimension
- Ordering
- Related
| name | number | unit |
| Safety information 1? | Ground power cord? | ? |
| rating? | IEC/EN 60664-1? | ? |
| The rated voltage (II / 2) [V]? | 450? | V? |
| Rated pulse voltage (II / 2) [kV]? | 4? | kV? |
| Rated current [A]? | 24? | A? |
| Legend (rating)? | (II / 2) ? Overvoltage category II / Pollution degree 2? | ? |
| Connection technology? | PUSH WIRE?? | ? |
| Operation type? | Direct insertion? | ? |
| Connectable wire material? | copper? | ? |
| Single conductor? | 0.5 … 2.5 mm? / 18 … 14 AWG? | ? |
| Wire stripping length? | 11 mm / 0.43 inches? | ? |
| Total number of connections? | 2? | ? |
| The total electricity digits? | 1? | ? |
| Connection type? | Lateral connection? | ? |

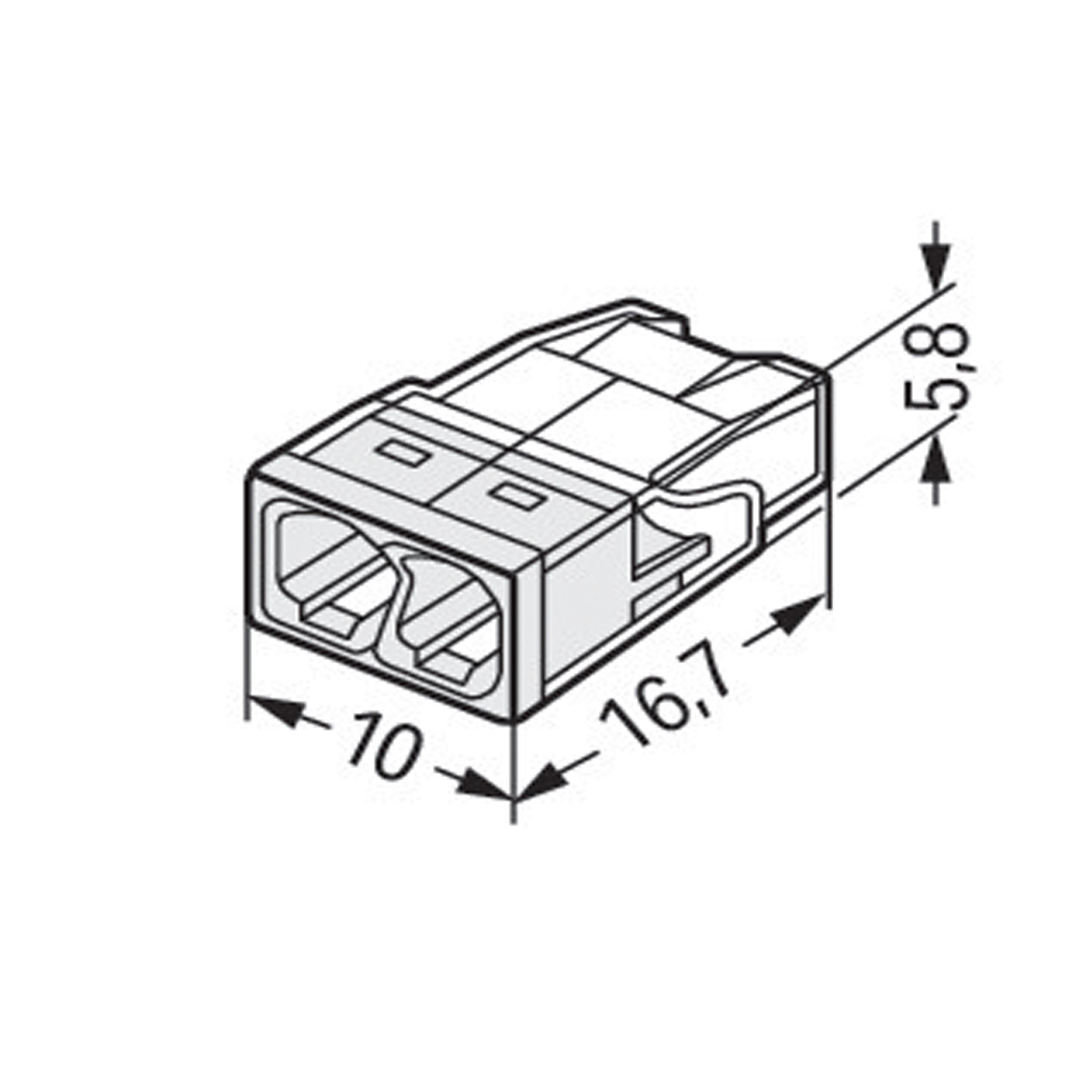

| width? | 10 mm / 0.394 inches? | ? |
| height? | 5.8 mm / 0.228 inches? | ? |
| depth? | 16.7 mm / 0.657 inches? | ? |
| color? | white? | ? |
| Cover color? | white? | ? |
| Flammability class according to UL 94? | V2? | ? |
| The fire load [MJ]? | 0.014? | MJ? |
| weight [g]? | 0.713? | g? |
| Ambient temperature? | 60 °C? | ? |
| Maximum continuous operating temperature [°C]? | 105? | °C? |
| T-Marking per EN 60998? | T60? | ? |
| Packing type? | BOX? | ? |
| Main product functions? | Steckklemme? | ? |
| The product type? | Wire connector? | ? |
