KV212
click: 4452
7 (Installation technology)?Minimum sectional area of connectable wire [mm?]0,08 - 2,5 mm??Minimum sectional area of connectable wire [AWG]28 - 14 AWG?Applicable conductor typee+f?The connection methodCAGE CLAMP?CONNECTION?Minimum sectional area of c
pdf download：click down

Detailed description

technical

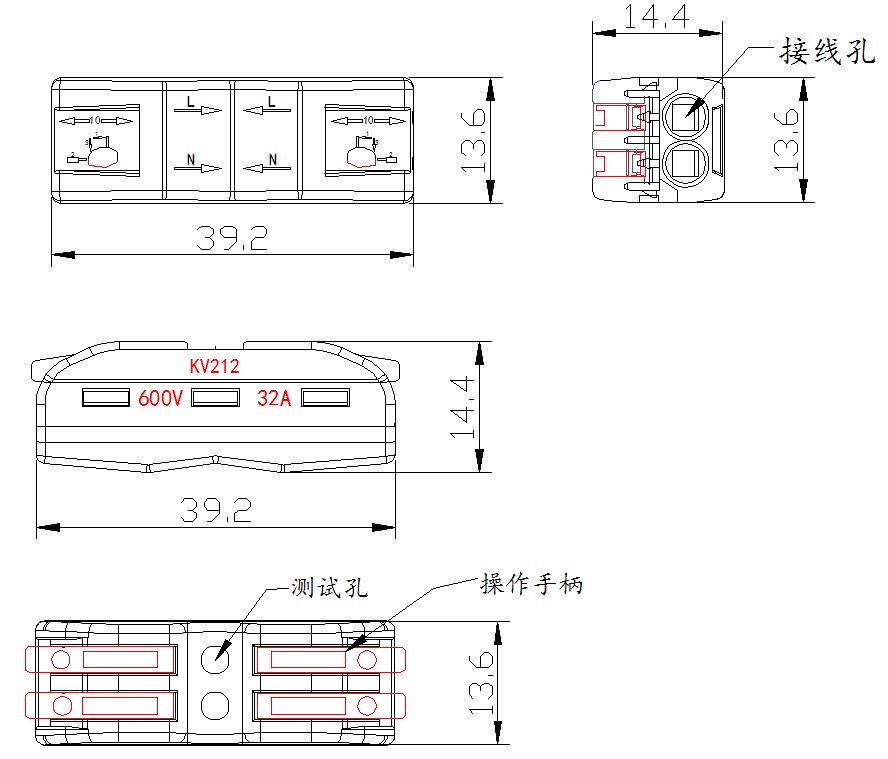

Dimension
Ordering
Related
pdf

7 (Installation technology)
?	Minimum sectional area of connectable wire [mm?]	0,08 - 2,5 mm?
?	Minimum sectional area of connectable wire [AWG]	28 - 14 AWG
?	Applicable conductor type	e+f
?	The connection method	CAGE CLAMP?CONNECTION
?	Minimum sectional area of connectable wire [mm?]	0,08 - 4 mm?
?	Minimum sectional area of connectable wire[AWG]	28 - 12 AWG
?	Applicable conductor type	f
?	The rated voltage EN	250 V
?	Can withstand instantaneous peak voltage	4 kV
?	Pollution levels	2
?	Rated currentEN	32 A
?	weight	3,072 g
?	color	grey
?	Wiring direction	Lateral connection
?	Number of connectable wires	2
?	Number of potential	1
?	height	14.4?mm
?	height
?	thickness	13.6?mm
?	thickness
?	width	13.6mm
?	Apply to guide	TH35/7.5
?	Minimum stripping length	9 mm
?	Maximum stripping length	10 mm
?	Wire stripping length	0,37 in

pdf down：click down
