Spring loaded PCB terminals | Products
This current location is:
KV243-7.5/7.62
click: 3148
ElectricalStandardULIECRated voltage300V750VRated current15A17AWire range28-12AWG0.2-2.5mm2 Withstanding voltageAC3000V/1MinMechanicalAmbient temperature-40°C~+105°CStrip length5-6mmDimensionsPitch7.5mm(.295") 7.62(.300")Poles1P-XXPMaterialHousingP
pdf download：click down
Detailed description
- technical

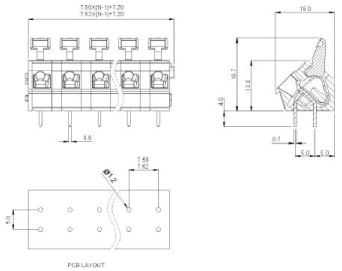

- Dimension
- Ordering
- Related
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
750V
|
| Rated current |
15A
|
17A
|
| Wire range |
28-12AWG
|
0.2-2.5mm2
|
| Withstanding voltage |
AC3000V/1Min
|
|
| Mechanical | ||
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
5-6mm
|
|
| Dimensions | ||
| Pitch |
7.5mm(.295") 7.62(.300")
|
|
| Poles |
1P-XXP
|
|
|
|
||
|
Material
|
||
| Housing |
PA66,UL94V-0
|
|
| Pin header |
Phosphor bronze,Tin plated
|
|
| Wire guard |
Stainless steel
|
|
pdf down：click down
