Spring loaded PCB terminals | Products
This current location is:
KV245H2-10.0/10.16
click: 3695
APPROVALElectricalStandardULIECRated voltage300V1000VRated current10A12AWire range28-12AWG2.5mm2 Withstanding voltageAC3500V/1MinMechanicalAmbient temperature-40°C~+105°CStrip length5-6mmDimensionsPitch10.0mm(.394') 10.16(.400")Poles2X(1P-XXP)
pdf download：click down
Detailed description
- technical
- Dimension

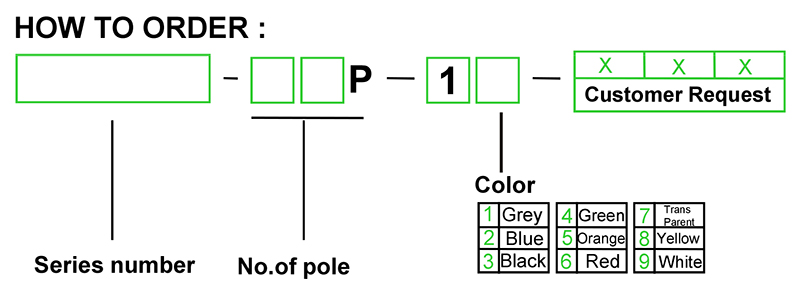

- Ordering
- Related
| APPROVAL |
|
|
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
1000V
|
| Rated current |
10A
|
12A
|
| Wire range |
28-12AWG
|
2.5mm2
|
| Withstanding voltage |
AC3500V/1Min
|
|
| Mechanical | ||
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
5-6mm
|
|
| Dimensions | ||
| Pitch |
10.0mm(.394') 10.16(.400")
|
|
| Poles |
2X(1P-XXP)
|
|
|
|
||
|
Material
|
||
| Housing |
PA66,UL94V-0
|
|
| Pin header |
Copper,Tin plated
|
|
| Wire guard |
Stainless steel
|
|
pdf down：click down
