The fence type PCB terminals | Products
This current location is:
KV8500HL
click: 3151
APPROVAL?Certification LinkElectricalStandardULIECRated voltage300V450VRated current20A24AWire range22-12AWG2.5mm2Withstand VoltageAC2000V/MinInsulation Resistance500MΩ/DC500V?MechanicalMax.Torque Value0.5N.m 4.4Lb.inAmbient temperature-40°C~+105
pdf download：click down
Detailed description
- technical

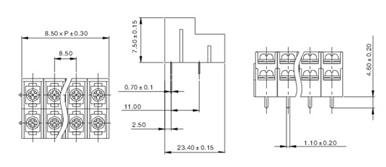

- Dimension
- Ordering
- Related
| APPROVAL |
 ?Certification Link
|
|
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
450V
|
| Rated current |
20A
|
24A
|
| Wire range |
22-12AWG
|
2.5mm2
|
| Withstand Voltage |
AC2000V/Min
|
|
| Insulation Resistance |
500MΩ/DC500V
|
|
| ? | ||
| Mechanical | ||
| Max.Torque Value |
0.5N.m 4.4Lb.in
|
|
| Ambient temperature |
-40°C~+105°C
|
|
| ? | ||
| Dimensions | ||
| Pitch |
8.5mm
|
|
| Poles |
2P-4P
|
|
|
?
|
||
|
Material
|
||
| Housing |
PA66GF, UL 94V-0
|
|
| Terminal |
Brass,0.8t,Tin-Plated
|
|
| Screws |
Steel,M3 Ni-Plated
|
|
pdf down：click down
