Plug type PCB terminals | Products
This current location is:
2EDGK-7.5/7.62
click: 2421
APPROVAL?Certification Link ?Certification Link ElectricalStandardULIECRated voltage300V400VRated current15A20AWire range28-12AWG2.5mm2 Withstanding voltage4.0KVMechanicalTorque0.4Nm(3.5Lb-In)Ambient temperature-40°C~+105°CStrip length7mmDimensio
pdf download：click down
Detailed description
- technical
- Dimension
- Ordering
- Related
| APPROVAL | ||
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
400V
|
| Rated current |
15A
|
20A
|
| Wire range |
28-12AWG
|
2.5mm2
|
| Withstanding voltage |
4.0KV
|
|
| Mechanical | ||
| Torque |
0.4Nm(3.5Lb-In)
|
|
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
7mm
|
|

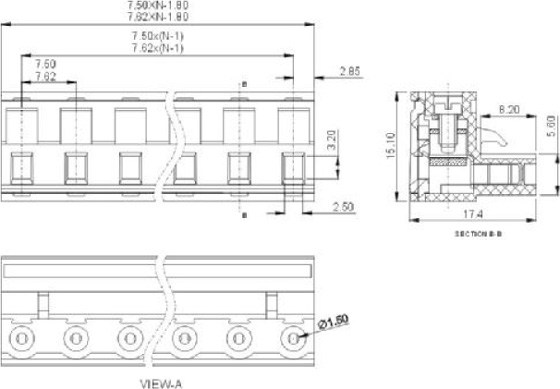

| Dimensions | ||
| Pitch |
7.5mm(.295") 7.62mm(.300")
|
|
| Poles |
2P-12P
|
|
| Material | ||
| Housing |
PA66,UL94V-0
|
|
| Screws |
M2.5,Steel,Cr3+Zn-plated
|
|
| Contact |
Phosphor bronze
|
|
| Cage |
Brass,Ni-plated
|
|
?Certification Link
?Certification Link
pdf down：click down
