Plug type PCB terminals | Products
This current location is:
15EDGKD-3.81
click: 2447
APPROVAL?Certification Link ?Certification Link ElectricalStandardULIECRated voltage300V250VRated current8A7AWire range28-16AWG0.5-1.5mm2 Rated impulse voltage2.5KV?MechanicalTorque0.2Nm(1.7Lb-In.)Ambient temperature-40°C~+105°CStrip length7mm?
pdf download：click down
Detailed description
- technical

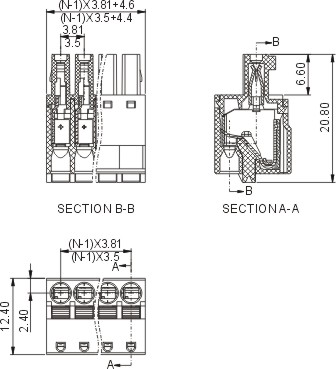

- Dimension
- Ordering
- Related
| APPROVAL | ||
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
250V
|
| Rated current |
8A
|
7A
|
| Wire range |
28-16AWG
|
0.5-1.5mm2
|
| Rated impulse voltage |
2.5KV
|
|
| ? | ||
| Mechanical | ||
| Torque |
0.2Nm(1.7Lb-In.)
|
|
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
7mm
|
|
| ? | ||
| Dimensions | ||
| Pitch |
3.5mm(.138") 3.81mm(.150")
|
|
| Poles |
2P-24P
|
|
|
?
|
||
|
Material
|
||
| Housing |
PA66,UL94V-0
|
|
| Screws |
M2,steel,Cr3+?Zn plated
|
|
| Contact |
Phosphor bronze
|
|
| Cage |
Brass,Ni plated
|
|
?Certification Link
?Certification Link
pdf down：click down
