UK rail type terminal | Products
This current location is:
UK16JD
click: 2542
CapabilityApproval Certification Link StandardULIECVoltage--Current--Wire size12-4AWG0.2-16mm2 T/W/End plate12.2/42.5/-mmHeight (NS35:7.5/NS35:15/NS32)54/61.5/59mmRated Surge Voltage/Contamination Class8kV/3Stripping Length11 mmClamping Screw:Screw T
pdf download：click down
Detailed description
- technical

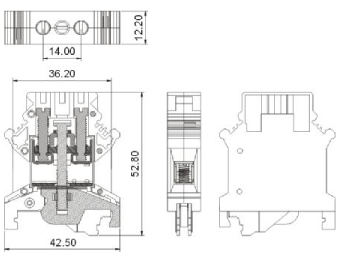

- Dimension
- Ordering
- Related
| Capability | ||
| Approval |
|
 Certification Link
|
| Standard |
UL
|
IEC
|
| Voltage |
-
|
-
|
| Current |
-
|
-
|
| Wire size |
12-4AWG
|
0.2-16mm2
|
| T/W/End plate |
12.2/42.5/-mm
|
|
| Height (NS35:7.5/NS35:15/NS32) |
54/61.5/59mm
|
|
| Rated Surge Voltage/Contamination Class |
8kV/3
|
|
| Stripping Length |
11 mm
|
|
| Clamping Screw:Screw Thread/Tightening Torque |
M4/1.2Nm
|
|
| Fixing Screw:Screw Thread/Tightening Torque |
M4/1.2Nm
|
|
| Internal Cylindrical Gage |
B7
|
|
| Insulating Material/Inflammability Class |
PA/V-0
|
|
pdf down：click down
