UK rail type terminal | Products
This current location is:
UK35JD
click: 2544
CapabilityApproval StandardULIECVoltage--Current--Wire size18AWG0.2-35mm2T/W/End plate15.2/55/-mmHeight (NS35:7.5/NS35:15/NS32)62/69.5/67mmRated Surge Voltage/Contamination Class8kV/3Stripping Length15 mmClamping Screw:Screw Thread/Tightening TorqueM
pdf download：click down
Detailed description
- technical

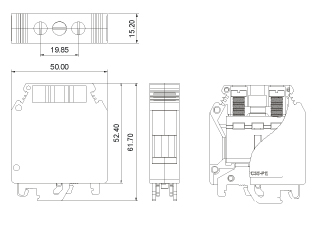

- Dimension
- Ordering
- Related
| Capability | ||
| Approval |
|
|
| Standard |
UL
|
IEC
|
| Voltage |
-
|
-
|
| Current |
-
|
-
|
| Wire size |
18AWG
|
0.2-35mm2
|
| T/W/End plate |
15.2/55/-mm
|
|
| Height (NS35:7.5/NS35:15/NS32) |
62/69.5/67mm
|
|
| Rated Surge Voltage/Contamination Class |
8kV/3
|
|
| Stripping Length |
15 mm
|
|
| Clamping Screw:Screw Thread/Tightening Torque |
M6/2.5Nm
|
|
| Fixing Screw:Screw Thread/Tightening Torque |
M5/2.0Nm
|
|
| Internal Cylindrical Gage |
B9
|
|
| Insulating Material/Inflammability Class |
PA/V-0 |
|
pdf down：click down
