UK rail type terminal | Products
This current location is:
UK50JD
click: 2427
CapabilityApproval StandardULIECVoltage--Current--Wire size6-1/0AWG25-50mm2T/W/End plate20/70.5/-mmHeight (NS35:7.5/NS35:15/NS32)-/83.5/81.5mmRated Surge Voltage/Contamination Class6kV/3Stripping Length24 mmClamping Screw:Screw Thread/Tightening Torq
pdf download：click down
Detailed description
- technical

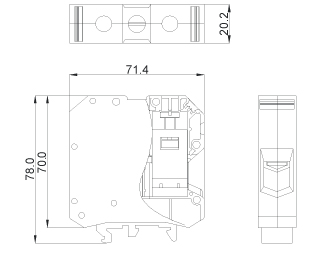

- Dimension
- Ordering
- Related
| Capability | ||
| Approval |
|
|
| Standard |
UL
|
IEC
|
| Voltage |
-
|
-
|
| Current |
-
|
-
|
| Wire size |
6-1/0AWG
|
25-50mm2
|
| T/W/End plate |
20/70.5/-mm
|
|
| Height (NS35:7.5/NS35:15/NS32) |
-/83.5/81.5mm
|
|
| Rated Surge Voltage/Contamination Class |
6kV/3
|
|
| Stripping Length |
24 mm
|
|
| Clamping Screw:Screw Thread/Tightening Torque |
M6/6-8Nm
|
|
| Fixing Screw:Screw Thread/Tightening Torque |
M6/6-8Nm
|
|
| Internal Cylindrical Gage |
B10
|
|
| Insulating Material/Inflammability Class |
PA/V-0
|
|
pdf down：click down
