UK rail type terminal | Products
This current location is:
UDK2.5
click: 2716
CapabilityApproval Certification Link Certification Link StandardULIECVoltage300V500VCurrent20A24AWire size24-12AWG0.2-2.5mm2 T/W/End plate5.2/63.5/1.5mmHeight (NS35:7.5/NS35:15/NS32)47/54.5/52.5mmRated Surge Voltage/Contamination Class6kV/3Strippin
pdf download：click down
Detailed description
- technical

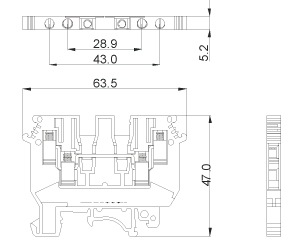

- Dimension
- Ordering
- Related
| Capability | |||
| Approval |
 Certification Link
|
 Certification Link
|
|
| Standard |
UL
|
IEC
|
|
| Voltage |
300V
|
500V
|
|
| Current |
20A
|
24A
|
|
| Wire size |
24-12AWG
|
0.2-2.5mm2
|
|
| T/W/End plate |
5.2/63.5/1.5mm
|
||
| Height (NS35:7.5/NS35:15/NS32) |
47/54.5/52.5mm
|
||
| Rated Surge Voltage/Contamination Class |
6kV/3
|
||
| Stripping Length |
8 mm
|
||
| Screw Thread/Tightening Torque |
M3/0.5Nm
|
||
| Internal Cylindrical Gage |
A3
|
||
| Insulating Material/Inflammability Class |
PA/V-0
|
||
pdf down：click down
