UK rail type terminal | Products
This current location is:
UDK4
click: 2517
CapabilityApproval Certification Link Certification LinkStandardULIECVoltage300V630VCurrent30A32AWire size24-10AWG0.2-4mm2T/W/End plate6.2/63.5/1.5mmHeight (NS35:7.5/NS35:15/NS32)47/54.5/52.5mmRated Surge Voltage/Contamination Class8kV/3Stripping Len
pdf download：click down
Detailed description
- technical

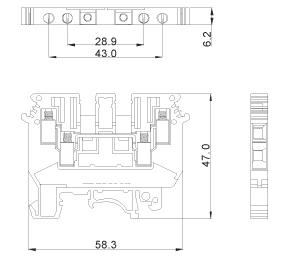

- Dimension
- Ordering
- Related
| Capability | |||
| Approval |
 Certification Link
|
 Certification Link
|
|
| Standard |
UL
|
IEC
|
|
| Voltage |
300V
|
630V
|
|
| Current |
30A
|
32A
|
|
| Wire size |
24-10AWG
|
0.2-4mm2
|
|
| T/W/End plate |
6.2/63.5/1.5mm
|
||
| Height (NS35:7.5/NS35:15/NS32) |
47/54.5/52.5mm
|
||
| Rated Surge Voltage/Contamination Class |
8kV/3
|
||
| Stripping Length |
8 mm
|
||
| Screw Thread/Tightening Torque |
M3/0.5Nm
|
||
| Internal Cylindrical Gage |
A4
|
||
| Insulating Material/Inflammability Class |
PA/V-0
|
||
pdf down：click down
