UK rail type terminal | Products
This current location is:
UKDK 2.5-PE
click: 3682
CapabilityApproval StandardULIECVoltage--Current--Wire size24-12AWG0.2-2.5mm2T/W/End plate5.2/63.5/-mmHeight (NS35:7.5/NS35:15/NS32)47/54.5/52.5mmRated Surge Voltage/Contamination Class6kV/3Stripping Length8 mmClamping Screw:Screw Thread/Tightening T
pdf download：click down
Detailed description
- technical

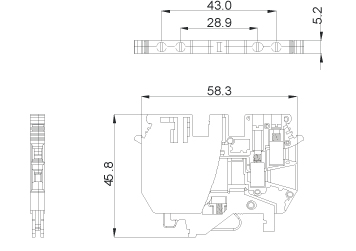

- Dimension
- Ordering
- Related
| Capability | ||
| Approval |
|
|
| Standard |
UL
|
IEC
|
| Voltage |
-
|
-
|
| Current |
-
|
-
|
| Wire size |
24-12AWG
|
0.2-2.5mm2
|
| T/W/End plate |
5.2/63.5/-mm
|
|
| Height (NS35:7.5/NS35:15/NS32) |
47/54.5/52.5mm
|
|
| Rated Surge Voltage/Contamination Class |
6kV/3
|
|
| Stripping Length |
8 mm
|
|
| Clamping Screw:Screw Thread/Tightening Torque |
M3/0.5Nm
|
|
| Fixing Screw:Screw Thread/Tightening Torque |
M3/0.6-0.8Nm
|
|
| Internal Cylindrical Gage |
A3
|
|
| Insulating Material/Inflammability Class |
PA/V-0 |
|
pdf down：click down
