UK rail type terminal | Products
This current location is:
UKIK 16
click: 3350
CapabilityApproval StandardULIECVoltage300V400VCurrent85A76AWire size12-4AWG4-16mm2T/W/End plate12.2/42.5/1.8mmHeight (NS35:7.5/NS35:15/NS32)47/54.5/52mmRated Surge Voltage/Contamination Class6kV/3Stripping Length11 mmScrew Thread/Tightening TorqueM4
pdf download：click down
Detailed description
- technical

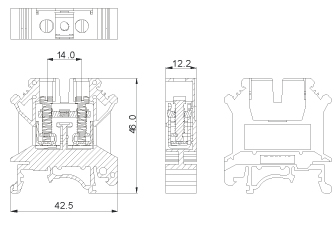

- Dimension
- Ordering
- Related
| Capability | |||
| Approval |
|
|
|
| Standard |
UL
|
IEC
|
|
| Voltage |
300V
|
400V
|
|
| Current |
85A
|
76A
|
|
| Wire size |
12-4AWG
|
4-16mm2
|
|
| T/W/End plate |
12.2/42.5/1.8mm
|
||
| Height (NS35:7.5/NS35:15/NS32) |
47/54.5/52mm
|
||
| Rated Surge Voltage/Contamination Class |
6kV/3
|
||
| Stripping Length |
11 mm
|
||
| Screw Thread/Tightening Torque |
M4/1.2Nm
|
||
| Internal Cylindrical Gage |
B7
|
||
| Insulating Material/Inflammability Class |
PA/V-0
|
||
pdf down：click down
