UK rail type terminal | Products
This current location is:
UKIK 16-PE
click: 3145
CapabilityApprovalCertification Link Certification Link StandardULIECVoltage--Current--Wire size24-10AWG0.2-6mm2 T/W/End plate8.2/42.5/-mmHeight (NS35:7.5/NS35:15/NS32)47/54.5/52mmRated Surge Voltage/Contamination Class8kV/3Stripping Length10 mmClamp
pdf download：click down
Detailed description
- technical

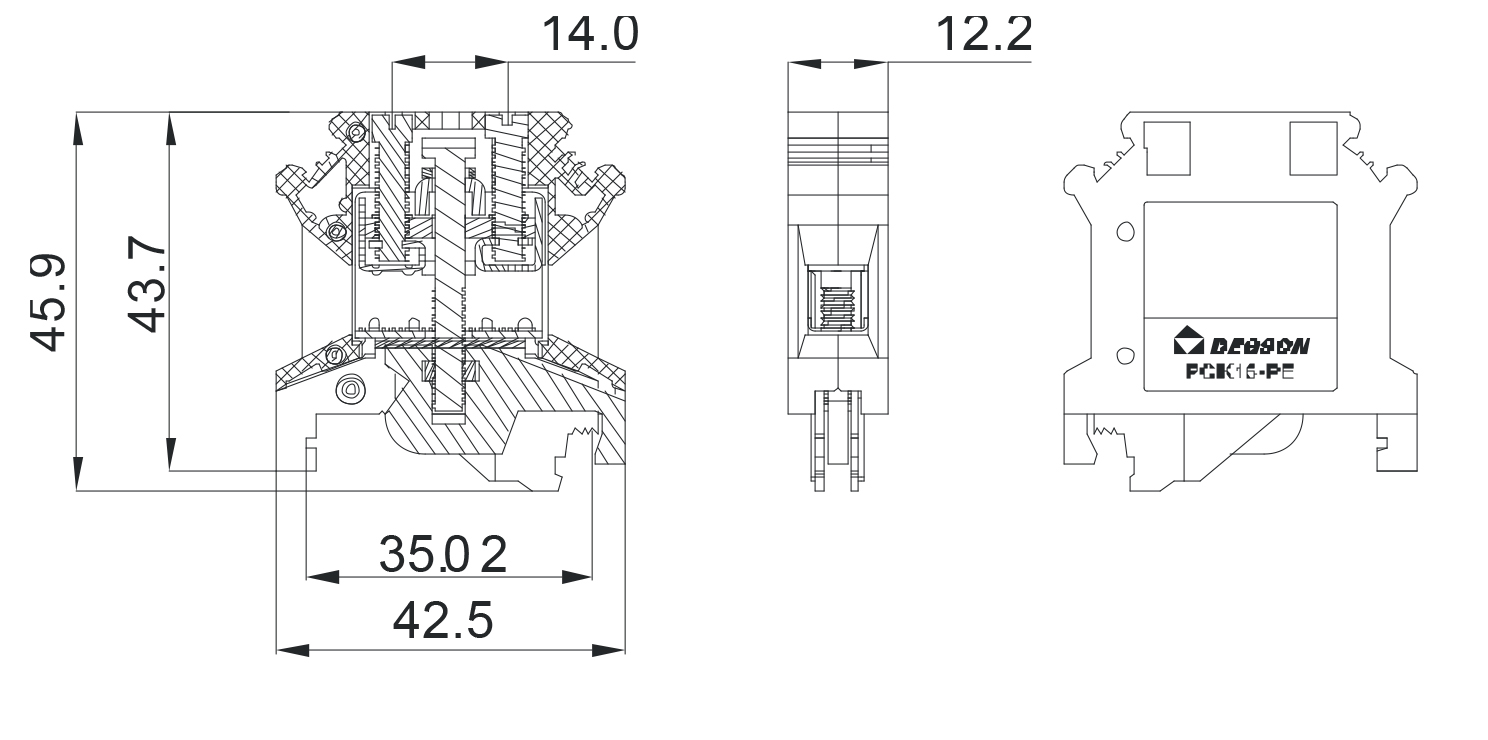

- Dimension
- Ordering
- Related
| Capability | ||
| Approval | ||
| Standard |
UL
|
IEC
|
| Voltage |
-
|
-
|
| Current |
-
|
-
|
| Wire size |
24-10AWG
|
0.2-6mm2
|
| T/W/End plate |
8.2/42.5/-mm
|
|
| Height (NS35:7.5/NS35:15/NS32) |
47/54.5/52mm
|
|
| Rated Surge Voltage/Contamination Class |
8kV/3
|
|
| Stripping Length |
10 mm
|
|
| Clamping Screw:Screw Thread/Tightening Torque |
M4/1.2Nm
|
|
| Fixing Screw:Screw Thread/Tightening Torque |
M4/1.2Nm
|
|
| Internal Cylindrical Gage |
A5
|
|
| Insulating Material/Inflammability Class |
PA/V-0
|
|
| Specification |
Model
|
PCS
|
| (1)Ground Terminal Block |
PC 6-PE
|
50
|
| (2)Zack Strip |
ZB 8
|
|
Certification Link
Certification Link
pdf down：click down
