Wire connector | Products
This current location is:
KV224-201
click: 3019
APPROVAL?Certification Link ?Certification Link ElectricalStandardULIECRated voltage300V450VRated current22A24AWire range22-12AWG0.2-2.5mm2 Withstanding voltageAC2500V/1Min?MechanicalAmbient temperature-40°C~+105°CStrip length9-11mm?DimensionsP
pdf download：click down
Detailed description
- technical
- Dimension
- Ordering
- Related
| APPROVAL | ||
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
450V
|
| Rated current |
22A
|
24A
|
| Wire range |
22-12AWG
|
0.2-2.5mm2
|
| Withstanding voltage |
AC2500V/1Min
|
|
| ? | ||
| Mechanical | ||
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
9-11mm
|
|
| ? | ||

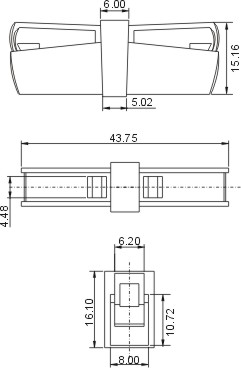

| Dimensions | ||
| Pitch |
8.0mm(.315")
|
|
| Poles |
1P
|
|
|
?
|
||
|
Material
|
||
| Housing |
PA66,UL94V-0
|
|
| Wire guard |
Stainless steel
|
|
| Contact |
Red Copper
|
|
?Certification Link
?Certification Link
pdf down：click down
