    Surge protector | Products
    This current location is:Home > Products > Surge protector
    KW-C40(NPE)
    click: 3844
    Product introductionKW - C40 (3 + NPE) surge protector is used for ac 50 hz / 60 hz, 380 v, TN and TN under - S - C, TN - C - S, TT, IT is power supply system, the product is installed on the 35 mm electric guide shell design, built-in failure from

    Detailed description

    • technical

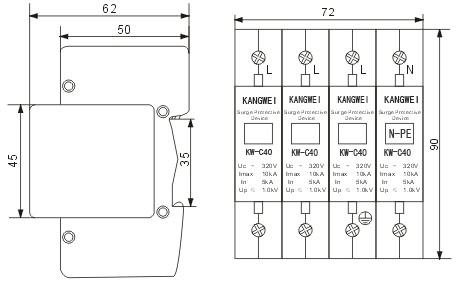

    • Dimension
    • Ordering
    • Related
    • pdf
    Product introduction
    KW - C40 (3 + NPE) surge protector is used for ac 50 hz / 60 hz, 380 v, TN and TN under - S - C, TN - C - S, TT, IT is power supply system, the product is installed on the 35 mm electric guide shell design, built-in failure from the device, when the surge protector for flow overheating, puncture failure, failure from the device can automatically pulled away from the grid, at the same time, visual warning device to a red from green (normal) (failure). The surge protector module can be replaced with a working voltage.
    Product features
    Adopt the patented technology for the protection of metal shielding modules.
    The technology of overheat and temperature control.
    Module design, installation is convenient, can be changed online.
    Small leakage current, quick response time, low.
    Warning device, green (normal), red (fault).
    New technology, high energy, interstitial discharge electrode (n-pe).
    Product application and installation location
    Installed in LPZOB area and LPZ1 area with LPZ2 area, usually installed in the center of the floor distribution box, computer, telecom equipment room, elevator control, frequency conversion control room equipment, hospital operating room, care unit and is equipped with electronic medical equipment of power distribution cabinet and dispersible cottage (SPD) should be installed in resident distribution box.
    Product design and order information: 1, the user should specify the model number and quantity in detail when designing and ordering the product. For example, kw-c40 / (3 + NPE) -385,8.
    Technical parameters

    Maximum continuous working voltage (Uc)

    275V

    320V

    385V

    420V

    440V

    Voltage protection level (Up)

    <1.0kV

    <1.5kV

    <1.5kV

    <2.0kV

    <2.0kV

    Nominal discharge current (In)

    20kA

    Iimp(10/350):

    Maximum discharge current (Imax)

    40kA

    12.5kA

    The response time

    <25 ns

    The test on the basis of

    GB18802.1、IEC61643-1

    Plug in wire area L/N(mm2)

    25-35 mm2

    Access to the ground connection area PE(mm2)

    25-35 mm2

    Type of circuit breaker or circuit breaker

    10A~16A

    The work environment

    -40℃~+85℃

    Relative humidity

    <95%

    The installation

    Standard guide rail35mm


    No file download
