> Positive terminal connection double and three layer

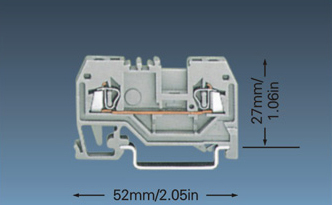

WD1-1.5
click: 2007
CapabilityApproval?Certification Link StandardULIECVoltage600V800VCurrent10A18AWire size28-16AWG0.2-1.5mm2 T/W/End plate4/52/2.5mmHeight (NS35:7.5/NS35:15)34.5/42mmRated Surge Voltage/Contamination Class8kV/3Stripping Length9 mmInsulating Material/
pdf download：click down
Detailed description
- technical

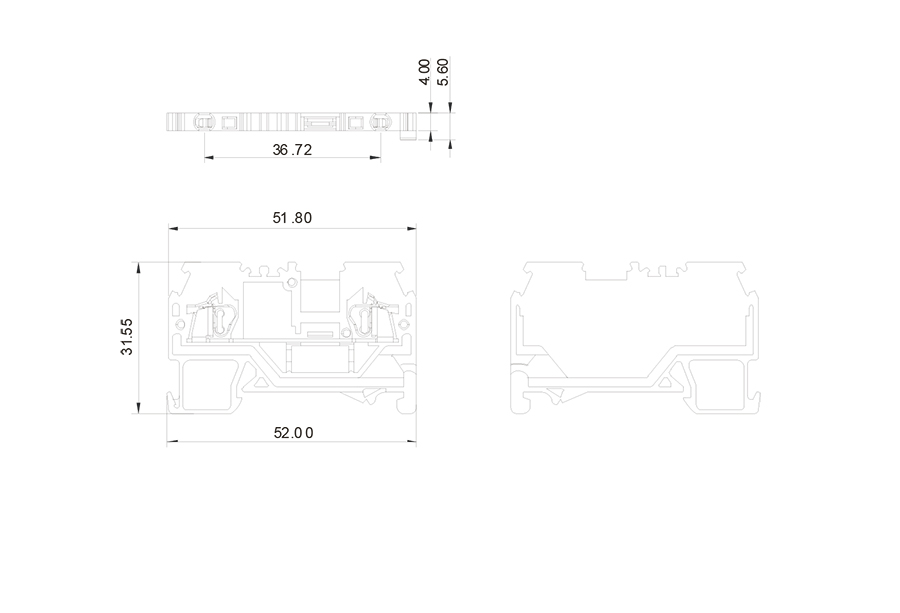

- Dimension
- Ordering
- Related
| Capability | |||
| Approval |
 ?Certification Link
|
|
|
| Standard |
UL
|
IEC
|
|
| Voltage |
600V
|
800V
|
|
| Current |
10A
|
18A
|
|
| Wire size |
28-16AWG
|
0.2-1.5mm2
|
|
| T/W/End plate |
4/52/2.5mm
|
||
| Height (NS35:7.5/NS35:15) |
34.5/42mm
|
||
| Rated Surge Voltage/Contamination Class |
8kV/3
|
||
| Stripping Length |
9 mm
|
||
| Insulating Material/Inflammability Class |
PA/V-0
|
||
