Screw type PCB terminals | Products
This current location is:
KV333J-3.5
click: 2827
ElectricalStandardULIECRated voltage300V250VRated current8A8AWithstanding voltage2KVMechanicalAmbient temperature-30°C~+120°CDimensionsPitch3.5mm(.138"),3.81mm(.150")Poles2P,3P-24PMaterialHousingPA66+25%GF.,UL94V-0Pin headerBrass,Tin plated
pdf download：click down
Detailed description
- technical

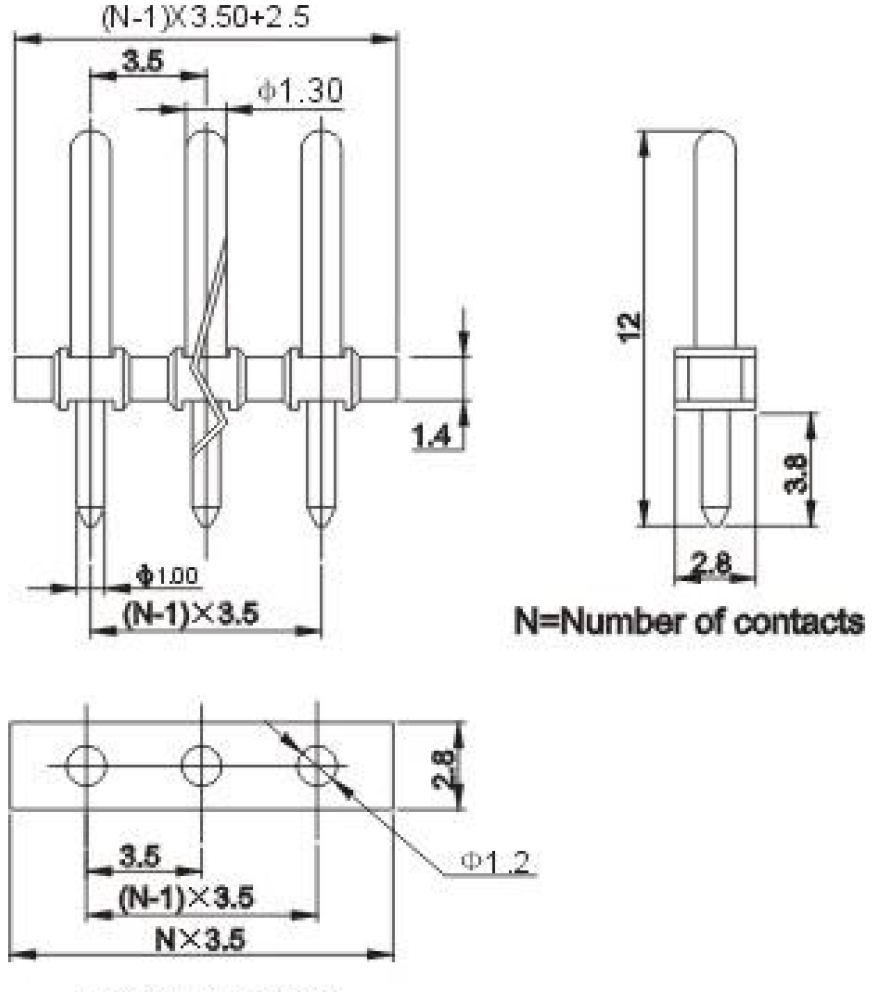

- Dimension
- Ordering
- Related
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
250V
|
| Rated current |
8A
|
8A
|
| Withstanding voltage |
2KV
|
|
| Mechanical | ||
| Ambient temperature |
-30°C~+120°C
|
|
| Dimensions | ||
| Pitch |
3.5mm(.138"),3.81mm(.150")
|
|
| Poles |
2P,3P-24P
|
|
|
|
||
|
Material
|
||
| Housing |
PA66+25%GF.,UL94V-0
|
|
| Pin header |
Brass,Tin plated
|
|
pdf down：click down
