Positive terminal connection double and three layer | Products
This current location is:Home
> Products
> Guide rail type spring terminals
> Positive terminal connection double and three layer

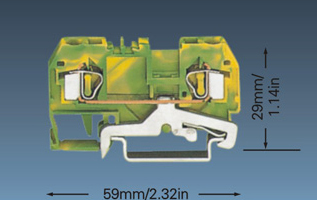

WD1-4/PE
click: 2532
CapabilityApprovalCertification Link StandardULIECVoltage--Current--Wire size28-12AWG0.2-4mm2 T/W/End plate6/59/2.5mmHeight (NS35:7.5/NS35:15)36.5/44mmRated Surge Voltage/Contamination Class8kV/3Stripping Length10 mmInsulating Material/Inflammabilit
pdf download：click down
Detailed description
- technical
- Dimension
- Ordering
- Related
| Capability | |||
| Approval |
 Certification Link
|
|
|
| Standard |
UL
|
IEC
|
|
| Voltage |
-
|
-
|
|
| Current |
-
|
-
|
|
| Wire size |
28-12AWG
|
0.2-4mm2
|
|
| T/W/End plate |
6/59/2.5mm
|
||
| Height (NS35:7.5/NS35:15) |
36.5/44mm
|
||
| Rated Surge Voltage/Contamination Class |
8kV/3
|
||
| Stripping Length |
10 mm
|
||
| Insulating Material/Inflammability Class |
PA/V-0
|
||
pdf down：click down
