Positive terminal connection double and three layer | Products
This current location is:Home
> Products
> Guide rail type spring terminals
> Positive terminal connection double and three layer

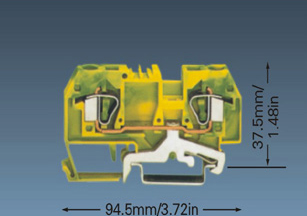

WD1-16B/PE
click: 3245
CapabilityApproval StandardULIECVoltage--Current--Wire size24-6AWG0.2-16mm2 T/W/End plate12/104.5/2.5mmHeight (NS35:7.5/NS35:15)45/52.5mmRated Surge Voltage/Contamination Class8kV/3Stripping Length17 mmInsulating Material/Inflammability ClassPA/V-0
pdf download：click down
Detailed description
- technical
- Dimension
- Ordering
- Related
| Capability | |||
| Approval |
|
|
|
| Standard |
UL
|
IEC
|
|
| Voltage |
-
|
-
|
|
| Current |
-
|
-
|
|
| Wire size |
24-6AWG
|
0.2-16mm2
|
|
| T/W/End plate |
12/104.5/2.5mm
|
||
| Height (NS35:7.5/NS35:15) |
45/52.5mm
|
||
| Rated Surge Voltage/Contamination Class |
8kV/3
|
||
| Stripping Length |
17 mm
|
||
| Insulating Material/Inflammability Class |
PA/V-0
|
||
pdf down：click down
