Lateral connection type terminal | Products
This current location is:Home
> Products
> Guide rail type spring terminals
> Lateral connection type terminal

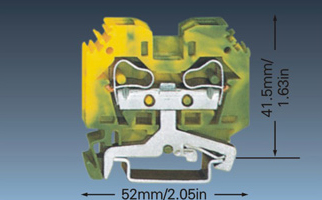

WD2-10/PE
click: 3486
CapabilityApprovalStandardULIECVoltage--Current--Wire size24-8AWG0.2-mm2 T/W/End plate10/52/2.5mmHeight (NS35:7.5/NS35:15)49/56.5mmRated Surge Voltage/Contamination Class8kV/3Stripping Length13 mmInsulating Material/Inflammability ClassPA/V-0
pdf download：click down
Detailed description
- technical
- Dimension
- Ordering
- Related
| Capability | ||
| Approval |
|
|
| Standard |
UL
|
IEC
|
| Voltage |
-
|
-
|
| Current |
-
|
-
|
| Wire size |
24-8AWG
|
0.2-mm2
|
| T/W/End plate |
10/52/2.5mm
|
|
| Height (NS35:7.5/NS35:15) |
49/56.5mm
|
|
| Rated Surge Voltage/Contamination Class |
8kV/3
|
|
| Stripping Length |
13 mm
|
|
| Insulating Material/Inflammability Class |
PA/V-0
|
|
pdf down：click down
