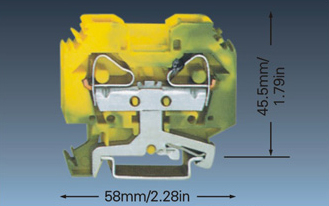

WD2- 16/PE
click: 3378
CapabilityApprovalStandardULIECVoltage--Current--Wire size24-6AWG0.2-16mm2 T/W/End plate12/58/2.5mmHeight (NS35:7.5/NS35:15)53/60.5mmRated Surge Voltage/Contamination Class8kV/3Stripping Length17 mmInsulating Material/Inflammability ClassPA/V-0
pdf download：click down
Detailed description
- technical
- Dimension
- Ordering
- Related
| Capability | ||
| Approval |
|
|
| Standard |
UL
|
IEC
|
| Voltage |
-
|
-
|
| Current |
-
|
-
|
| Wire size |
24-6AWG
|
0.2-16mm2
|
| T/W/End plate |
12/58/2.5mm
|
|
| Height (NS35:7.5/NS35:15) |
53/60.5mm
|
|
| Rated Surge Voltage/Contamination Class |
8kV/3
|
|
| Stripping Length |
17 mm
|
|
| Insulating Material/Inflammability Class |
PA/V-0
|
|
pdf down：click down
