KV126-7.5
click: 3023
ElectricalStandardULIECRated voltage300V450VRated current10A18AWire range26-14AWG0.5-2.5mm2 Withstanding voltage2.5KVMechanicalTorque0.4Nm(3.5Lb-In)Ambient temperature-40°C~+105°CStrip length6-7mmDimensionsPitch7.5mm(.295")Poles2P,3P-24PMaterialHou
pdf download：click down
Detailed description
- technical

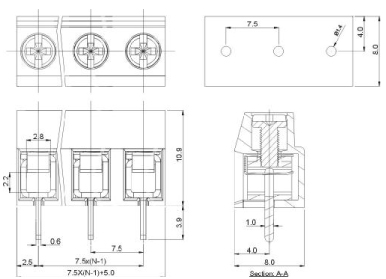

- Dimension
- Ordering
- Related
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
450V
|
| Rated current |
10A
|
18A
|
| Wire range |
26-14AWG
|
0.5-2.5mm2
|
| Withstanding voltage |
2.5KV
|
|
| Mechanical | ||
| Torque |
0.4Nm(3.5Lb-In)
|
|
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
6-7mm
|
|
| Dimensions | ||
| Pitch |
7.5mm(.295")
|
|
| Poles |
2P,3P-24P
|
|
|
|
||
|
Material
|
||
| Housing |
PA66,UL94V-0
|
|
| Screws |
M2.5,Steel, Cr3+Znplated
|
|
| Pin header |
Brass,Tin-plated
|
|
| Wire guard |
Strainless steel
|
|
