> ST back to pull the spring terminals

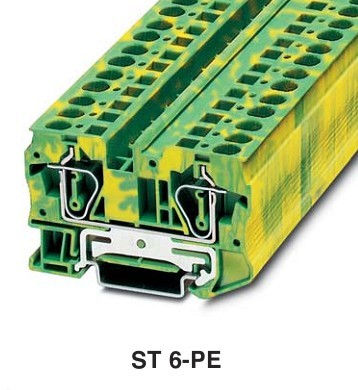

ST6PE
click: 3534
The rated voltage800VRated current52AWire diameter0.5-6mm2Thickness/length/end plate thickness8.2/69.5/2.2mmHighly(NS35∶7.5 / NS35∶15 / NS32)43.5/51Rated impact voltage/Pollution level8kV/3Insulation material/flame retardant gradePA/V-0
Detailed description
- technical
- Dimension
- Ordering
- Related
|
The rated voltage |
800V |
|
Rated current |
52A |
|
Wire diameter |
0.5-6mm2 |
|
Thickness/length/end plate thickness |
8.2/69.5/2.2mm |
|
Highly(NS35∶7.5 / NS35∶15 / NS32) |
43.5/51 |
|
Rated impact voltage/Pollution level |
8kV/3 |
|
Insulation material/flame retardant grade |
PA/V-0 |
