ST back to pull the spring terminals | Products
This current location is:Home
> Products
> Guide rail type spring terminals
> ST back to pull the spring terminals

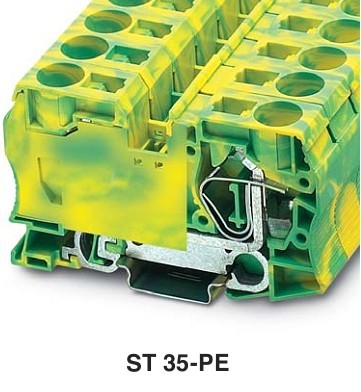

ST35PE
click: 3583
The rated voltage800VRated current90AWire diameter1.5-35mm2Thickness/length/end plate thickness16/100mmHighly(NS35∶7.5 / NS35∶15 / NS32)59/66.5Rated impact voltage/Pollution level8kV/3Insulation material/flame retardant gradePA/V-1
Detailed description
- technical
- Dimension
- Ordering
- Related
|
The rated voltage |
800V |
|
Rated current |
90A |
|
Wire diameter |
1.5-35mm2 |
|
Thickness/length/end plate thickness |
16/100mm |
|
Highly(NS35∶7.5 / NS35∶15 / NS32) |
59/66.5 |
|
Rated impact voltage/Pollution level |
8kV/3 |
|
Insulation material/flame retardant grade |
PA/V-1 |
