KV127R-5.0/5.08
click: 2978
ElectricalStandardULIECRated voltage300V250VRated current12A15AWire range26-14AWG1.5mm2 Withstanding voltage4KVMechanicalTorque0.4Nm(3.5Lb-In.)Ambient temperature-40°C~+105°CStrip length6mmDimensionsPitch5.0mm(.197"),5.08mm(.200")Poles2P,3P-24PMate
pdf download：click down
Detailed description
- technical

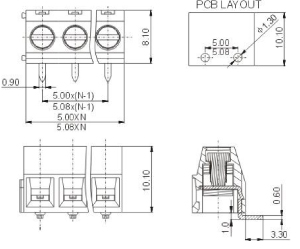

- Dimension
- Ordering
- Related
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
250V
|
| Rated current |
12A
|
15A
|
| Wire range |
26-14AWG
|
1.5mm2
|
| Withstanding voltage |
4KV
|
|
| Mechanical | ||
| Torque |
0.4Nm(3.5Lb-In.)
|
|
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
6mm
|
|
| Dimensions | ||
| Pitch |
5.0mm(.197"),5.08mm(.200")
|
|
| Poles |
2P,3P-24P
|
|
|
|
||
|
Material
|
||
| Housing |
PA66,UL94V-0
|
|
| Screws |
M2.5,steel,Cr3+ Zn plated
|
|
| Pin header |
Brass,Tin plated
|
|
| Cage |
Brass,Ni plated
|
|
