Screw type PCB terminals | Products
This current location is:
KV120-2.54
click: 3821
ElectricalStandardULIECRated voltage150V130VRated current6A8AWire range26-18AWG1.0mm2 Withstanding voltageAC1250V/1MinMechanicalTorque0.1Nm(0.89Lb-In.)Ambient temperature-40°C~+105°CStrip length4.5mmDimensionsPitch2.54mm(.100")Poles2P-12PMaterialHo
pdf download：click down
Detailed description
- technical
- Dimension

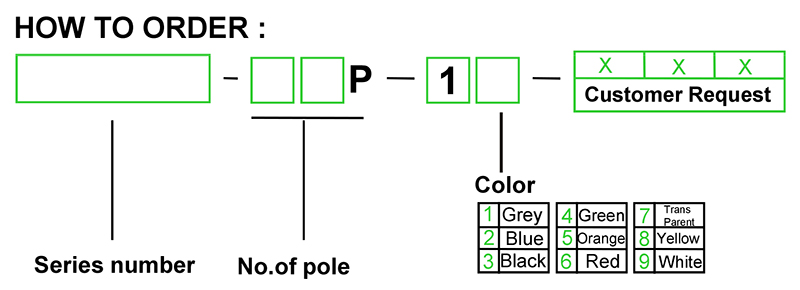

- Ordering
- Related
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
150V
|
130V
|
| Rated current |
6A
|
8A
|
| Wire range |
26-18AWG
|
1.0mm2
|
| Withstanding voltage |
AC1250V/1Min
|
|
| Mechanical | ||
| Torque |
0.1Nm(0.89Lb-In.)
|
|
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
4.5mm
|
|
| Dimensions | ||
| Pitch |
2.54mm(.100")
|
|
| Poles |
2P-12P
|
|
|
|
||
|
Material
|
||
| Housing |
PA66,UL94V-0
|
|
| Screws |
M1.6,steel,Cr3+ Zn plated
|
|
| Pin header |
Phosphor bronze,Tin plated
|
|
| Cage |
Brass,Ni plated
|
|
pdf down：click down
