Spring loaded PCB terminals | Products
This current location is:
KV142R-7.62
click: 3567
ElectricalStandardULIECRated voltage300V450VRated current10A15AWire range22-16AWG0.2-1.5mm2 Withstanding voltageAC2500V/1MinMechanicalAmbient temperature-40°C~+105°CStrip length10mmDimensionsPitch7.62(.300")Poles1P-XXPMaterialHousingPA66,UL94V-0Pin
pdf download：click down
Detailed description
- technical

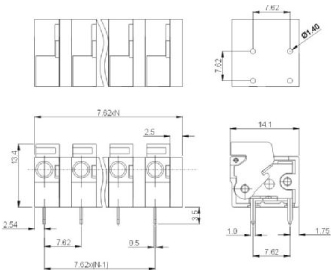

- Dimension
- Ordering
- Related
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
450V
|
| Rated current |
10A
|
15A
|
| Wire range |
22-16AWG
|
0.2-1.5mm2
|
| Withstanding voltage |
AC2500V/1Min
|
|
| Mechanical | ||
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
10mm
|
|
| Dimensions | ||
| Pitch |
7.62(.300")
|
|
| Poles |
1P-XXP
|
|
| Material | ||
| Housing |
PA66,UL94V-0
|
|
| Pin header |
Brass,Tin plated
|
|
| Wire guard |
Stainless steel
|
|
pdf down：click down
