KVMCSZ-2.5
click: 2665
A distance between3.5mm/3.81mmDigits2-24PScope of wiringAWG/mm224-14/0.2-2.5Technical dataIECULThe rated voltageV250300Rated currentA1010Rated impact voltageKV2.5Pollution levels2Insulation materialsPA66Flame retardant gradeV0Applicable ambient tempe
Detailed description
- technical

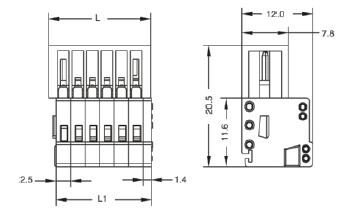

- Dimension
- Ordering
- Related
|
A distance between |
3.5mm/3.81mm |
||
|
Digits |
2-24P |
||
|
Scope of wiring |
AWG/mm2 |
24-14/0.2-2.5 |
|
|
Technical data |
IEC |
UL |
|
|
The rated voltage |
V |
250 |
300 |
|
Rated current |
A |
10 |
10 |
|
Rated impact voltage |
KV |
2.5 |
|
|
Pollution levels |
2 |
||
|
Insulation materials |
PA66 |
||
|
Flame retardant grade |
V0 |
||
|
Applicable ambient temperature |
–40℃～+105℃ |
||
|
Optional color |
3.5?spacing (gray);3.81?spacing (orange) |
||
|
Contact materials |
Phosphor bronze tin plating |
||
|
The shell material |
Stainless steel |
||
|
Connection mode |
Spring card |
||
|
Apply to wire |
0.2-2.5 mm2 all kinds of wire |
||
|
Wire stripping length |
7mm/?0.28in |
||
?
?
?
