MCSRK-5.0/5.08/7.5/7.62
click: 2664
A distance between5.0mm/5.08mmDigits2-24PScope of wiringAWG/mm224-14/0.2-2.5Technical dataIECULThe rated voltageV250300Rated currentA1210Rated impact voltageKV4Pollution levels3Insulation materialsPA66Flame retardant gradeV0Applicable ambient tempera
Detailed description
- technical

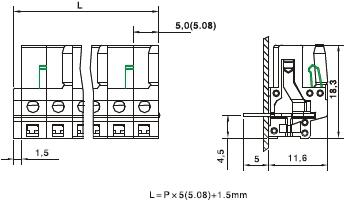

- Dimension
- Ordering
- Related
|
A distance between |
5.0mm/5.08mm |
||
|
Digits |
2-24P |
||
|
Scope of wiring |
AWG/mm2 |
24-14/0.2-2.5 |
|
|
Technical data |
IEC |
UL |
|
|
The rated voltage |
V |
250 |
300 |
|
Rated current |
A |
12 |
10 |
|
Rated impact voltage |
KV |
4 |
|
|
Pollution levels |
3 |
||
|
Insulation materials |
PA66 |
||
|
Flame retardant grade |
V0 |
||
|
Applicable ambient temperature |
–40℃～+105℃ |
||
|
Optional color |
5.0 spacing (gray); 5.08 spacing (orange) |
||
|
Contact materials |
Copper tin plating |
||
|
Welding needle size |
1.0*1.0mm |
||
